RDS Manufacturing Inc.


RDS Transfer Fuel Tanks



Fuel Transfer/Auxiliary Tank & Toolbox Combos



These aluminum tanks are designed for transferring diesel fuel and other nonflammable liquids from the bed of a pickup to remote or heavy equipment, and have a toolbox built-in for extra storage.



Tanks can also be used as an auxiliary unit to supply additional capacity to a factory tank, with the use of an RDS diesel install kit.



Each aluminum tank comes with a reinforced 2” female pipe thread coupling for manual or 12 Volt pump (not included), a 2” fuel fill neck, drain fittings, baffles, manual sight gauge, rollover valve (safety vent) and mounting tabs. Toolbox has linked stainless steel locks, and two lift cylinders to hold open the crowned lid. Aluminum tanks do not rust, protecting your fuel from contamination. All tanks meet DOT standards



Diesel Install kits are available (Item #s 011025, 011029 and 011408 sold separately). Not intended to be used for gasoline. Made in U.S.A.

71787
Transfer Tank & Toolbox Combos

--- Toolbox --- Fits Truck Beds Shipping
RDS # Gallons Length Width Height Length Height 5' 6' 8' (lbs)
74026 50 48" 20" 19" 41" 6¼" 88
71789 51 50" 20" 19" 41" 6¼" 90
71787 60 57" 20" 19" 48" 6¼" 93

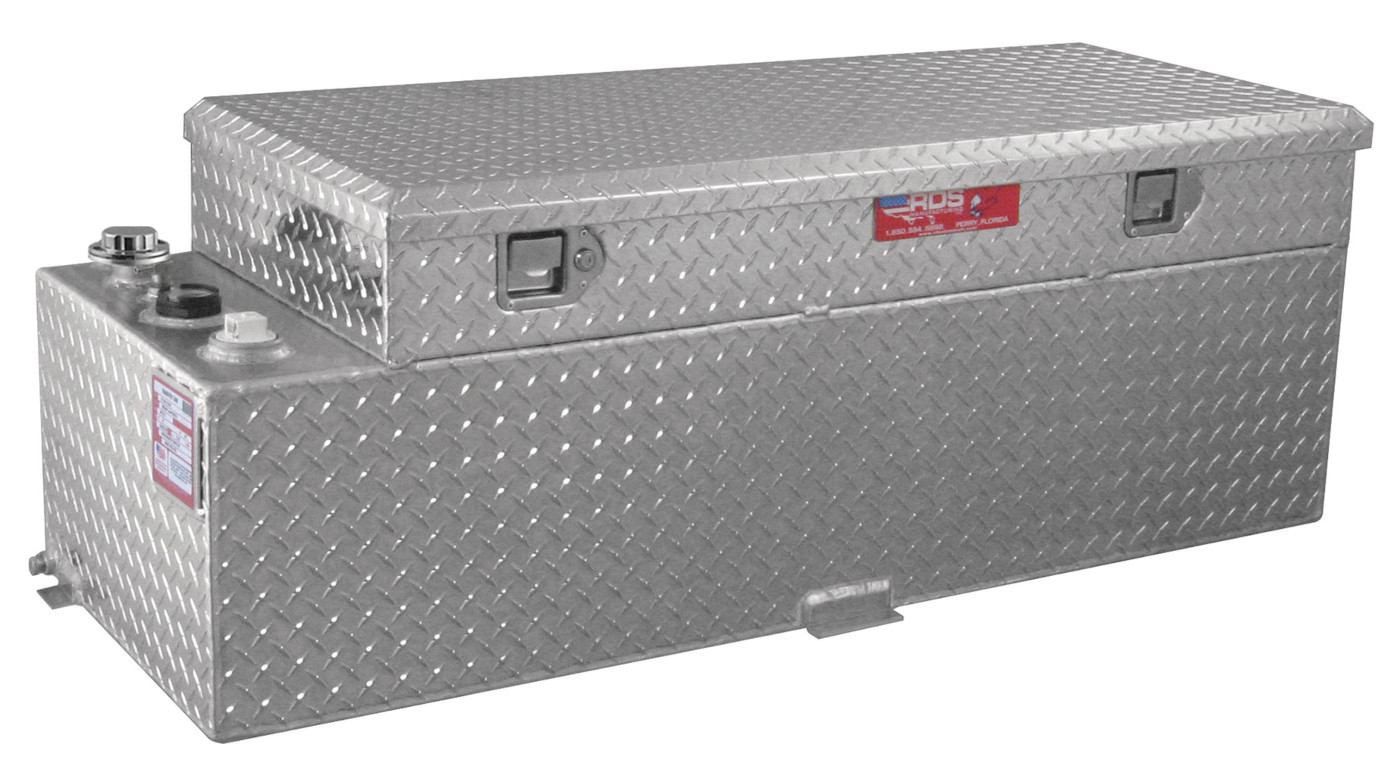

72548 60 55" 20" 19½" 48" 6¼" 93
71925 60 57" 20" 21¾" 48" 10" 96
71788 90 57" 30" 19" 48" 6¼" 123
72549 90 55" 30" 19½" 48" 6¼" 123

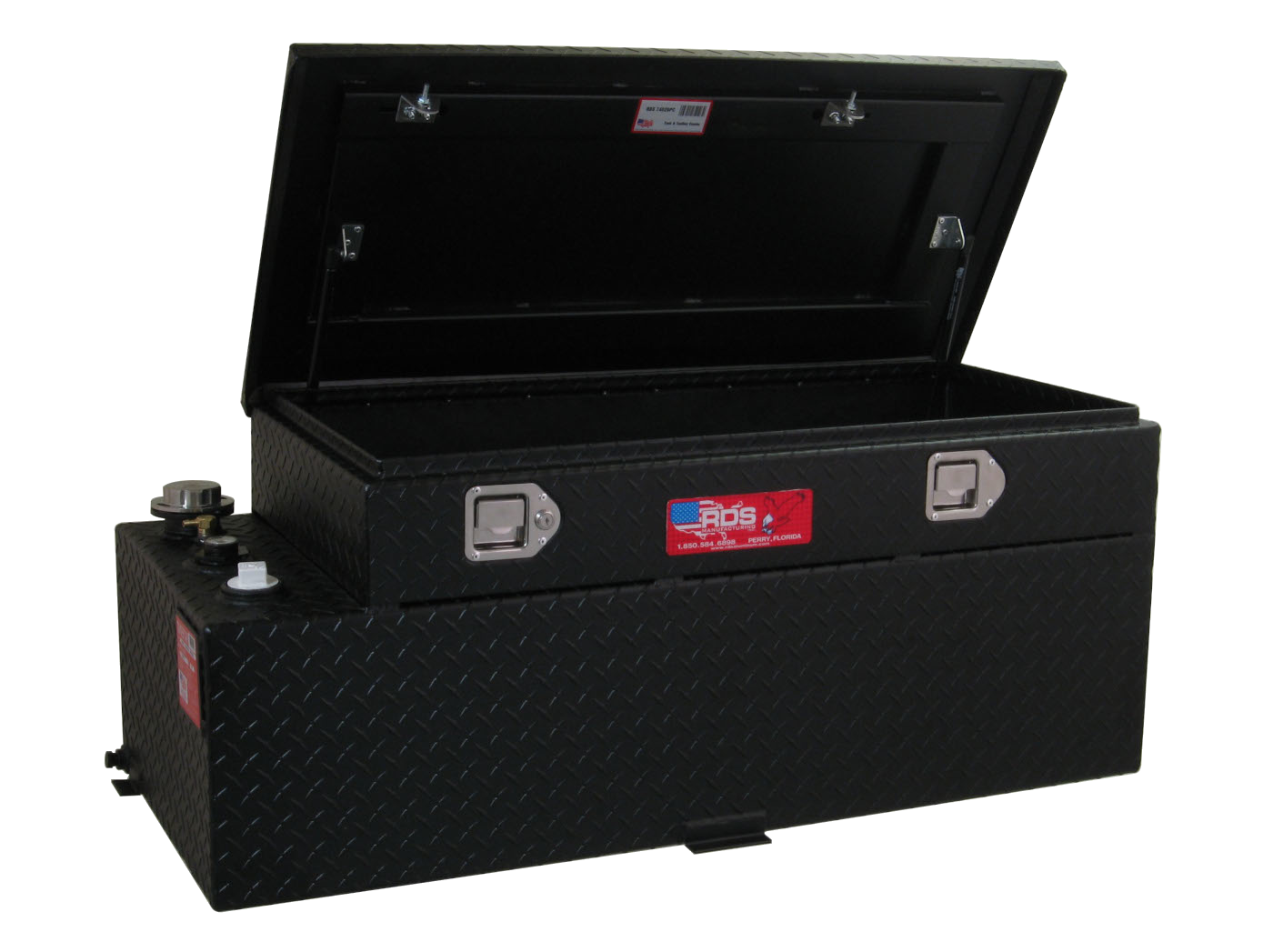

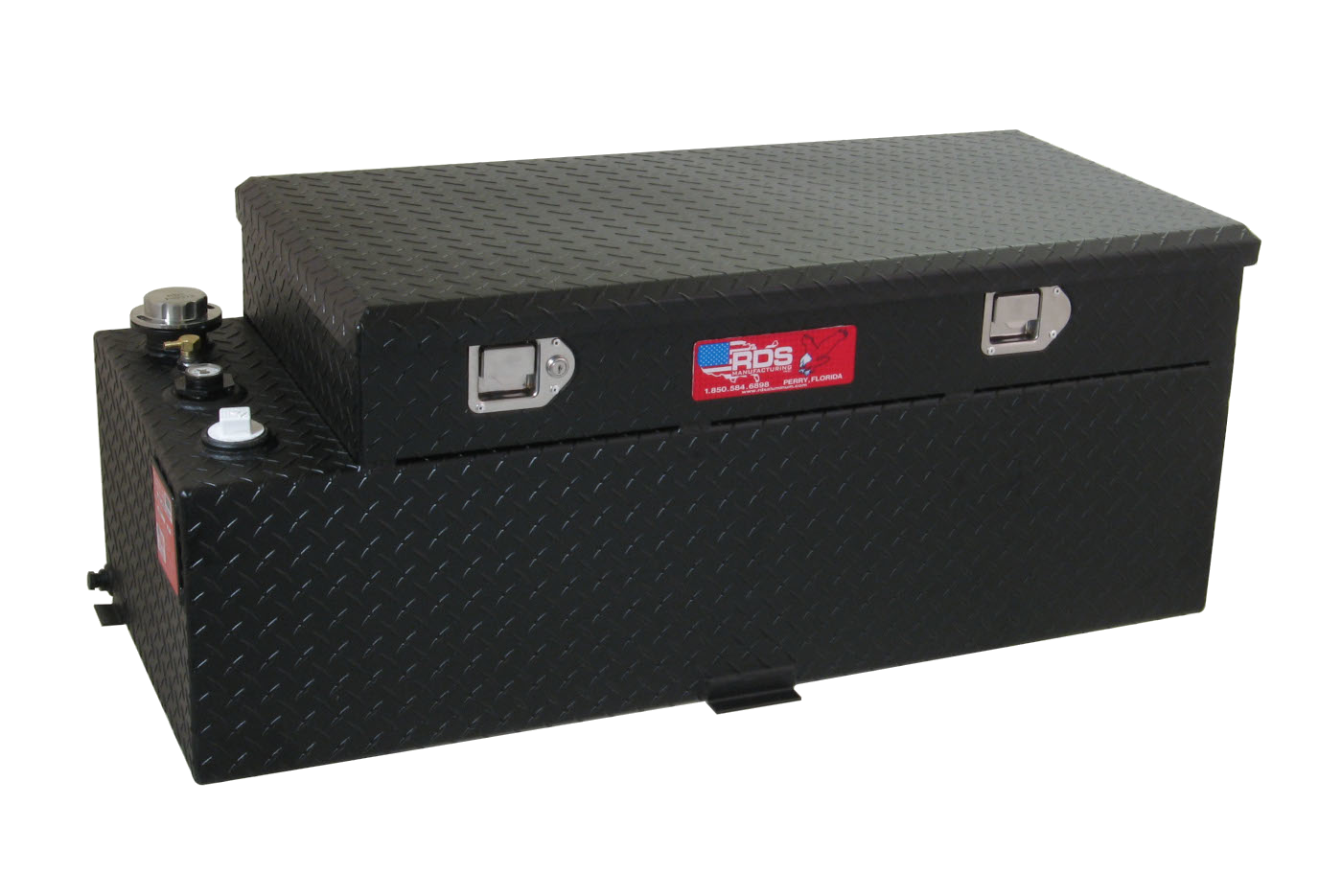

74026PC
Auxiliary Combo
Transfer Combos: Power Coat Finish
72548PC

--- Toolbox --- Fits Truck Beds Shipping
RDS # Gallons Length Width Height Length Height 5' 6' 8' (lbs)
74026PC 50 48" 20" 19" 41" 6¼" 88
72548PC 60 55" 20" 19½" 48" 6¼" 95

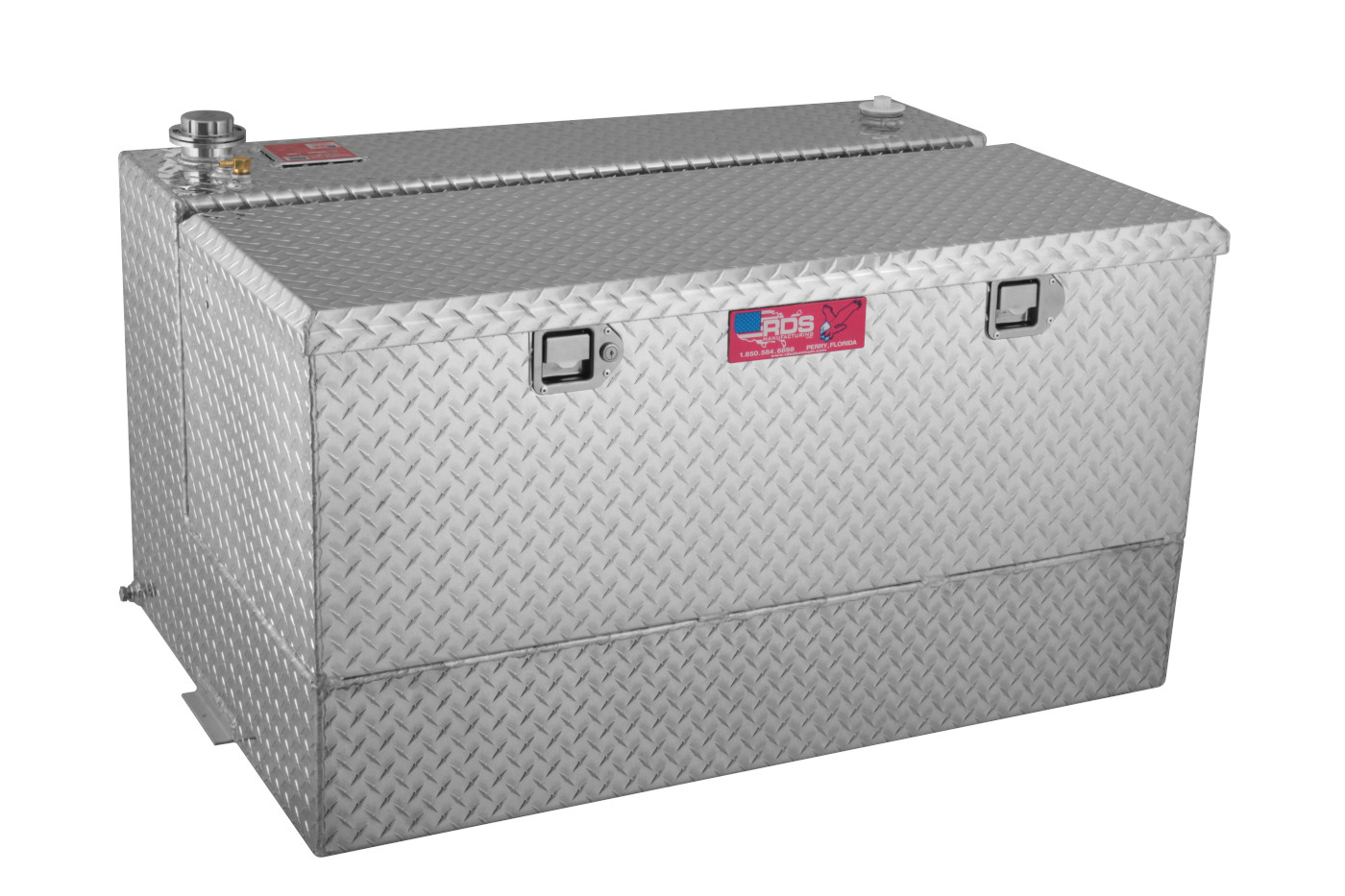

72367
'L' Shaped Tank & Toolbox Combos

--- Toolbox --- Fits Truck Beds Shipping
RDS # Gallons Length Width Height Width Height 5' 6' 8' (lbs)
72537 75 48" 27" 24" 18" 15" 110
72894 90 55" 30" 23¼" 48" 10" 142
72367 95 48" 32" 26" 21" 17" 145
71799 97 57" 30" 19" 20" 9" 135

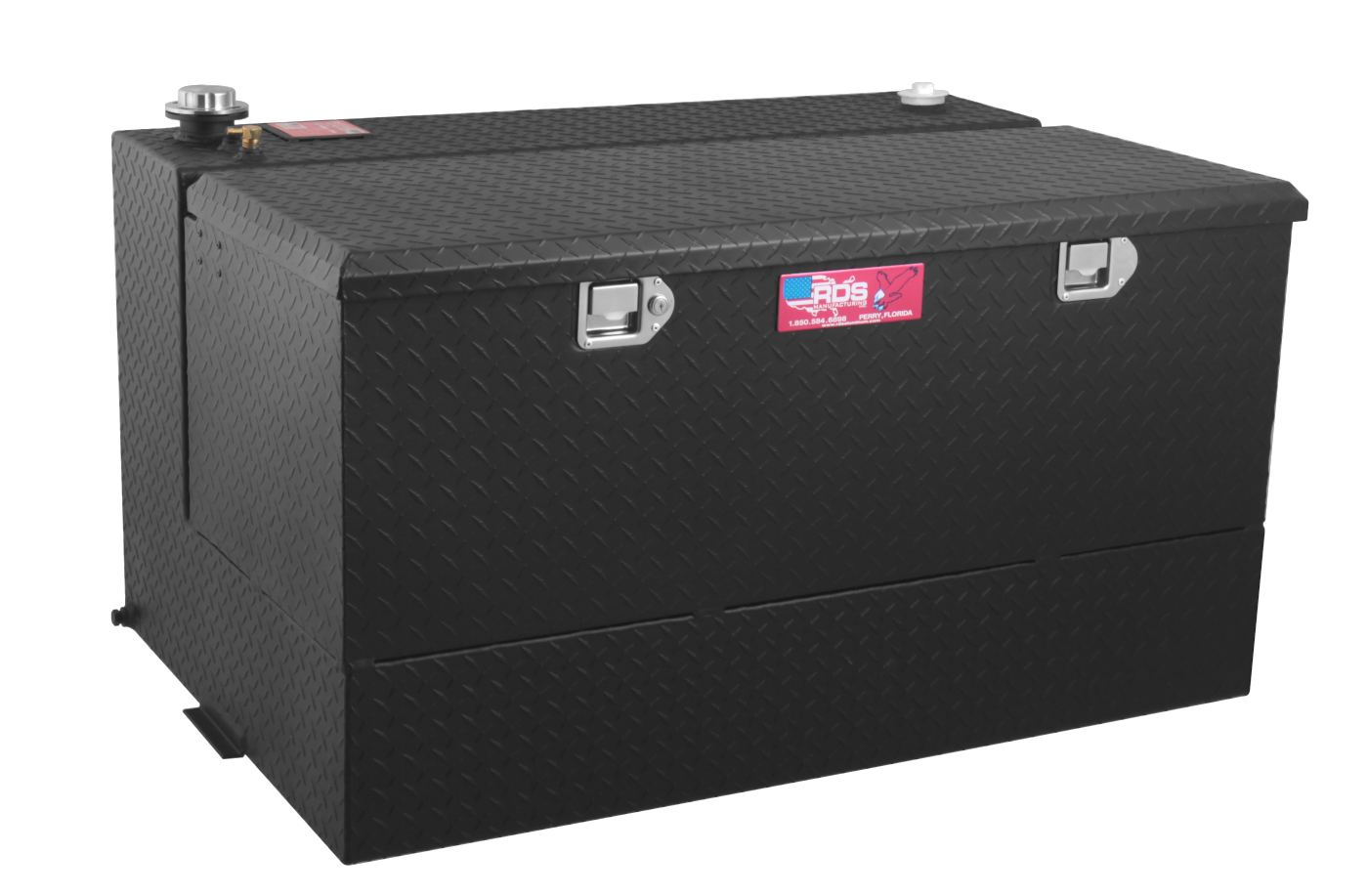

'L' Shaped Transfer Combo:Power Coat Finish
72367PC

--- Toolbox --- Fits Truck Beds Shipping
RDS # Gallons Length Width Height Length Height 5' 6' 8' (lbs)
72367PC 90 48" 32" 26" 48" 17" 145

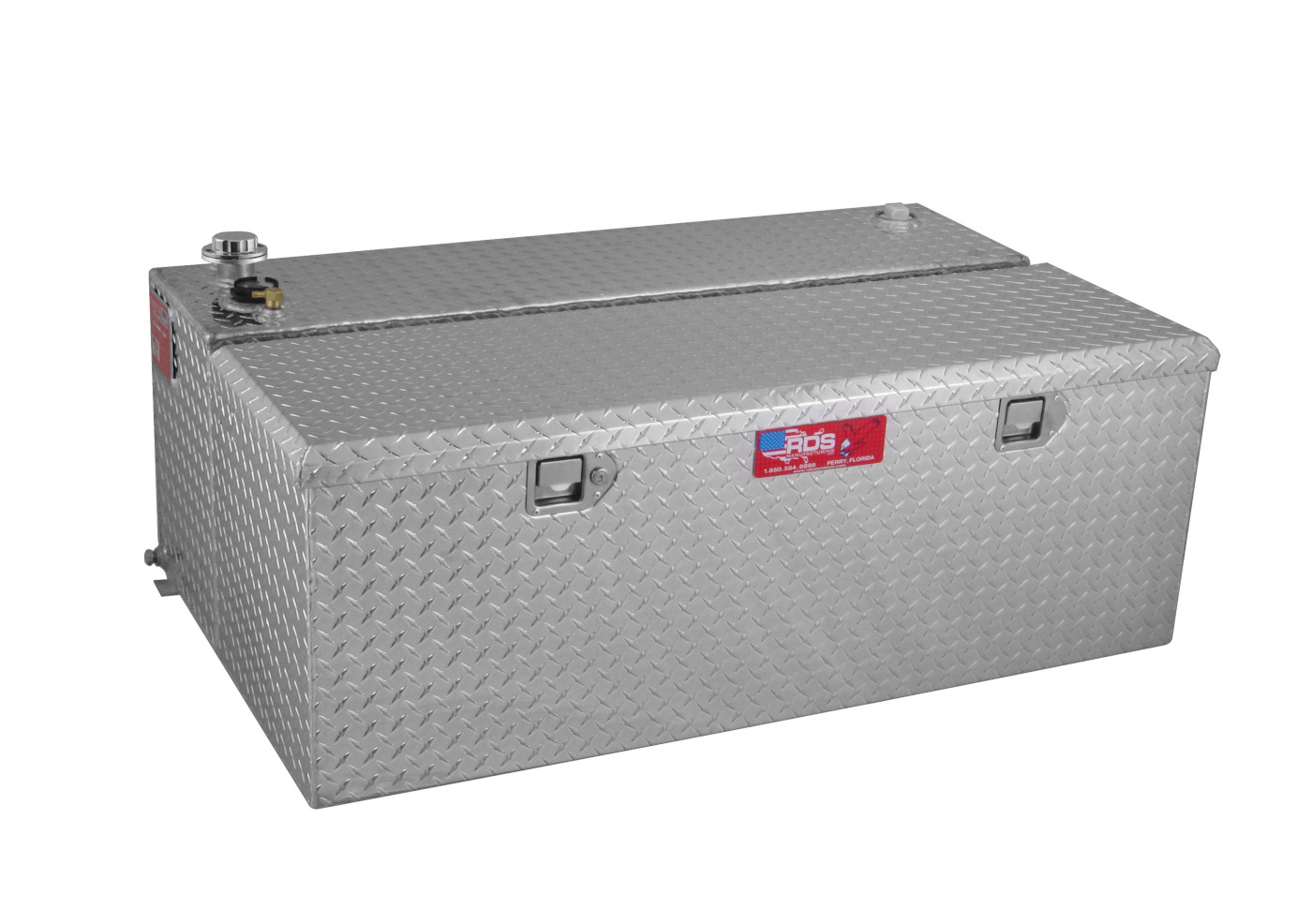

72774 Tank & Toolbox Combo
72774

--- Notch --- Shipping
RDS # Gallons Length Width Height Width Height MF/TP (lbs)
72774 48 50" 30" 18" 17" 18" 108



Fuel Transfer/Auxiliary Tank & Toolbox Combos With Pump



Rugged aluminum tank combination includes a fuel tank that meets all DOT standards for fuel transfer or storage, along with a built-in toolbox and a 12 Volt DC transfer pump. These aluminum tanks are designed for transferring diesel from the bed of a pickup to remote or heavy equipment. Aluminum tanks do not rust, which protects fuel from contamination.



The included GPI pump with explosion-proof motor and convenient spin collar for easy installation is available in EZ-8 model (8 GPM) or M-150S-MU model (15 GPM).



Features durable 0.125” diamond plate aluminum construction. The lid has a stainless steel keyed lock, with 2 opening handles. Built-in baffles reduce fuel slosh during transport. Includes a 10-ft. hose with a ¾” nozzle. The tank can be used for nonflammable liquids, but the pump is only for use with diesel fuel, up to 20% biodiesel blends such as B20, and kerosene.



Diesel Install kits are available (Item #s 011025, 011029 and 011408 sold separately). Not intended to be used for gasoline. Made in U.S.A.

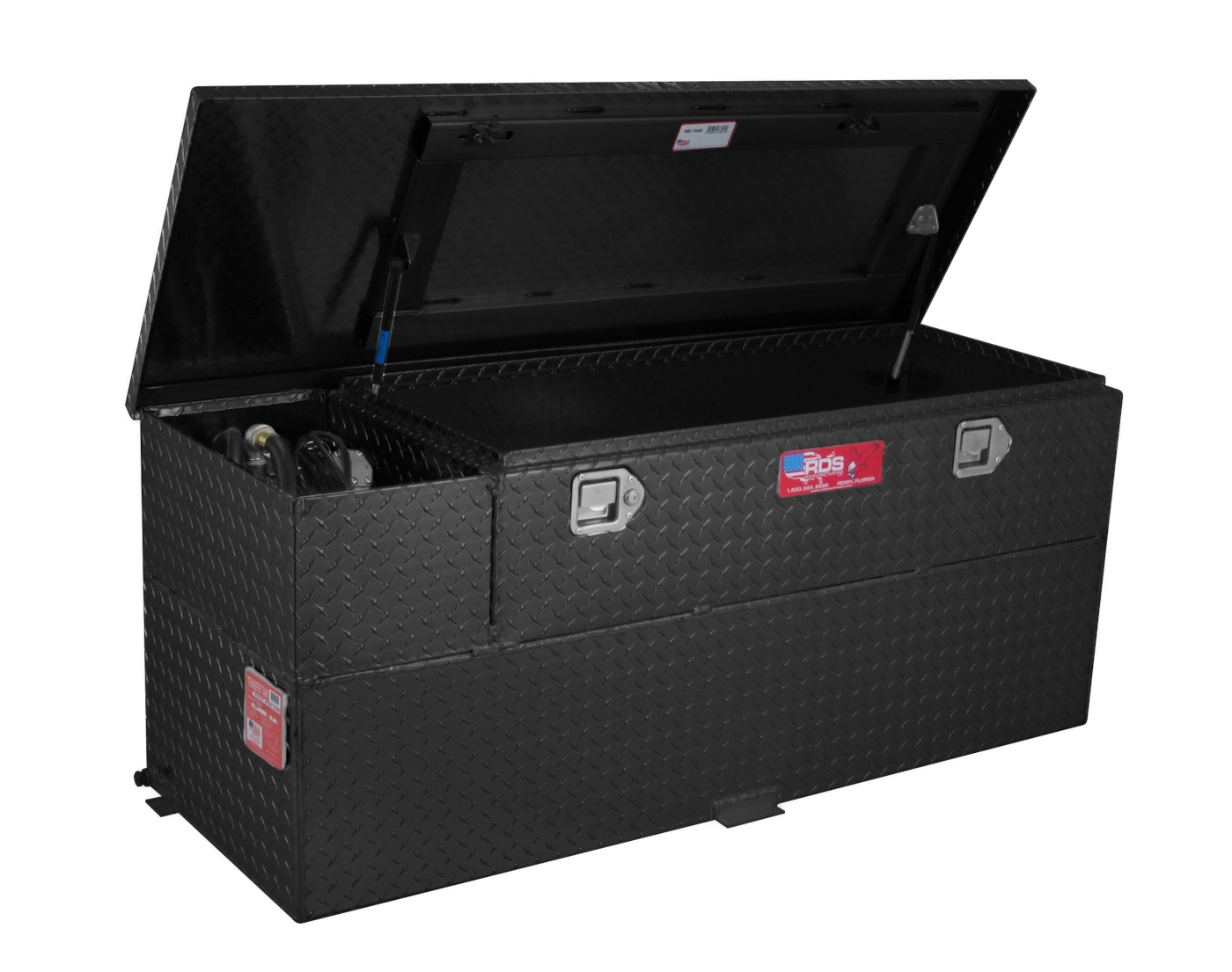

72855
Tank & Toolbox Combos
With Pump
Built-in 12 Volt Transfer Pump

--- Toolbox --- Pump Fits Truck Beds Shipping
RDS # Gallons Length Width Height Length Height GPM 5' 6' 8' (lbs)
73615 50 55" 30" 21" 44" 13¼" 8 114
73955 52 55" 30" 21" 44" 13¼" 15 136
73326 60 55" 20" 22¾" 44" 10" 8 116
73851 70 55" 30" 20" 44" 10" 8 134
73956 70 55" 30" 20" 44" 10" 15 147
72855 90 55" 30" 23¼" 44" 10" 8 142
73960 90 55" 30" 23¼" 44" 10" 15 187



Transfer Tank / Auxiliary Fuel Tanks



These aluminum tanks are designed for transferring diesel fuel and other nonflammable liquids from the bed of a pickup truck to remote or heavy equipment. These tanks can also be used as an auxiliary unit for additional capacity for a factory tank with the use of an RDS diesel install kit. Aluminum tanks do not rust which protects fuel from contamination. L-shaped models work with your cross-over toolbox. All tanks meet DOT standards. Each tank comes with a reinforced 2” female pipe thread coupling for manual or 12V transfer pump (not included), 2” fuel fill neck, rollover valve (vent), baffles and mounting tabs.



Diesel install kits are available (Item #s 011025, 011029 and 011408 sold separately) and will work with any RDS tank with a drain fitting. Not intended to be used with gasoline. Made in U.S.A.

70531
'L' Shaped Transfer Tanks
TP/MF - Treadplate overall,
with Mill Finish on tank back & bottom.

Fits Truck Beds Shipping
RDS # Gallons Length Width Height 'A' 'B' Finish 5' 6' 8' (lbs)
70531 48 24" 32" 26" 11" 9" TP/MF 52
70307 52 55" 18½" 17½" 9" 8" TP/MF 52
72770 60 48" 28" 16½" 9½" 8" TP 89

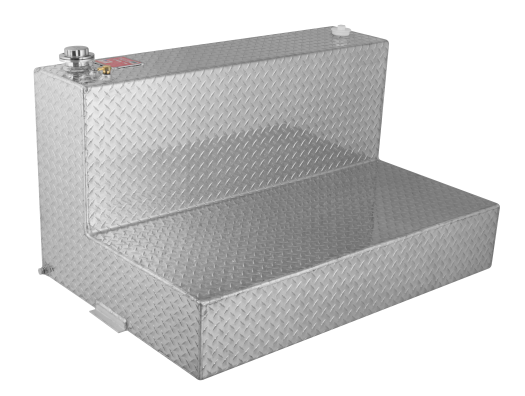

70388 95 48" 32" 26" 11" 9" TP/MF 105


70388PC
'L' Shaped Transfer Tank:
Power Coat Finish

--- Toolbox --- Fits Truck Beds Shipping
RDS # Gallons Length Width Height 'A' 'B' Finish 5' 6' 8' (lbs)
70388PC 95 48" 32" 26" 11" 9" TP/MF 105



Rectangular Diesel Transfer / Auxiliary Tanks

Fits Truck Beds Shipping
RDS # Gallons Length Width Height Finish 5' 6' 8' (lbs)
71109 55 36½" 22" 16½" MF 53
71110 55 36½" 22" 16½" TP 55
71212 60 56" 13" 19¼" TP 89
70326 69 57" 18" 16" TP 66
71793 80 50" 20" 19" TP 70
71792 80 50" 20" 19" MF 65
71790 91 57" 20" 19" MF 75
71791 91 57" 20" 19" TP 78
72551 91 55" 20" 20" TP 116
73216 150 48" 28" 28" MF 158
73217 200 60" 28½" 28" MF 116



Vertical Diesel Transfer / Auxiliary Tanks



These aluminum tanks are designed for transfering diesel fuel and other nonflammable liquids from the bed of a pickup truck to remote or heavy equipment. This tank can also be used as an auxiliary unit for additional capacity for a factory tank with the use of an RDS diesel install kit. Vertical design takes up less space. Tanks have locking gas cap, 2 baffles, reinforced 2” FPT coupling on top for mounting a transfer pump, 2” fuel fill neck and 3/8” FPT drain plugs. Meets DOT standards.



Diesel Install kits are available (Item #s 011025, 011029 and 011408 sold separately). Not intended to be used for gasoline. Made in U.S.A.

Fits Truck Beds Shipping
RDS # Gallons Length Width Height Finish 5' 6' 8' (lbs)
71083 45 57" 9½" 20" TP 56
72545 45 55" 9½" 21" TP 54
72117 70 48" 13½" 26" MF 68
72118 90 60" 14" 26" MF 79
73200 90 60" 14" 26" MF 79


Vertical Transfer/Auxiliary Tanks:
Power Coat Finish
71083PC
73200PC

Fits Truck Beds Shipping
RDS # Gallons Length Width Height Finish 5' 6' 8' (lbs)
71083PC 45 57" 9½" 20" TP 56
73200PC 90 60" 14" 26" TP 80
